HYDRAULIC HELM PUMPS

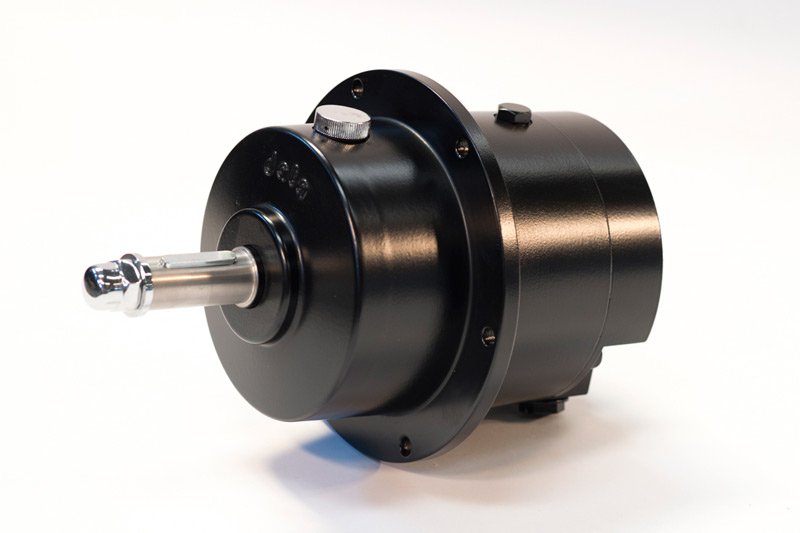

DATA hydraulic helm pumps are available in 8 displacements suitable to fit with various sizes of hydraulic cylinders. Helm pumps are axial piston type and specially designed for marine steering use. CE certificates are available meeting ISO EN10592:2000 standarts (excluding DP120, DP160 and DP240).
- Helm pump type DP* / DP*K
- Pump displacement 30-240cm³/r
- Pressure 60bar
- Connection ports BSP
FEATURES
- Designed for heavy duty use.
- Integrated valve system and oil reservoir for self air bleeding and balancing.
- Suitable to use with balanced and unbalanced cylinders (except DP30/42).
- Stainless steel shaft (DP30/42 bronze shaft).
- Marine grade cast aluminium body (die cast for DP30/42/63/75/88).
- DP30/42/63/75/88 are painted with semi gloss epoxy enamel black (RAL 9005).
- DP120/160/240 are painted with high gloss epoxy enamel white (RAL 9016)
